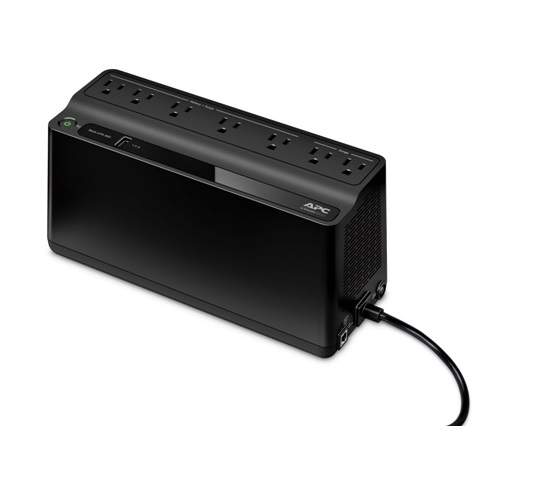

Battery BackupSurge Protector for Electronics and Computers
Adjustable voltage sensitivity
Provides the ability to adapt the UPS for optimal performance in specific power environments or generator applications.
Audible alarms
Provides notification of changing utility power and UPS power conditions
Automatic self-test
Periodic battery self-test ensures early detection of a battery that needs to be replaced.
Battery failure notification
Provides early-warning fault analysis on batteries enabling timely preventive maintenance
Building Wiring Fault Indicator
This LED informs users of potentially dangerous wiring problems in the wall circuit.
Cold-start capable
Provides temporary battery power when the utility power is out.
Disconnected battery notification
Warns when a battery is not available to provide backup power.
Hot-swappable batteries
Ensures clean, uninterrupted power to protected equipment while batteries are being replaced
Simple battery replacement
Increases UPS availability by allowing quick, easy battery replacement.
Transformer Block Spacing
Connect bulky transformer block plugs without covering up other outlets.
USB connectivity
Provides management of the UPS via a USB port (not available on all models).
Output
Output power capacity
330Watts / 600VA
Max Configurable Power (Watts)
330Watts / 600VA
Nominal Output Voltage
120V
Output Frequency (sync to mains)
50/60Hz +/- 3 Hz
Topology
Standby
Waveform type
Stepped approximation to a sinewave
Output Connections
(5) NEMA 5-15R (Battery Backup)
(2) NEMA 5-15R (selector_surgetitle)
Transfer Time 6ms
typical : 10ms maximum
Input
Nominal Input Voltage
120V
Input frequency
50/60 Hz +/- 3 Hz (auto sensing)
Input Connections
NEMA 5-15P
Cord Length
5ft ( 1.52meters )
Input voltage range for main operations
92 - 139V
Batteries and Runtime
Battery type
Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof
Typical recharge time
10hour(s)
Expected Battery Life (years)
3 - 5
Battery Volt-Amp-Hour Capacity
66
Communications and Management
Interface Port(s)
USB
Control panel
LED status display with On Line : On Battery : Replace Battery and Overload indicators
Audible Alarm
Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm
Surge Protection and Filtering
Surge energy rating
490Joules
Filtering
Full time multi-pole noise filtering :5% of IEEE surge let-through : zero clamping response time: instantaneous
Environmental
Operating Environment
32 - 104 oF ( 0 - 40 oC )
Operating Relative Humidity
0 - 90 %
Operating Elevation
0-10000ft ( 0-3000meters )
Storage Temperature
-15 - 45 oC
Storage Relative Humidity
0 - 95 %
Storage Elevation
0-50000ft ( 0-15000meters )
Audible noise at 1 meter from surface of unit
35.0dBA
Online thermal dissipation
16.0BTU/hr
Conformance
Approvals
California (CEC) Battery Charger, cTUVus, ENERGY STAR (USA), FCC Part 15 Class B, NOM, UL 1778
Equipment protection policy
Lifetime : 75000
Sustainable Offer Status
RoHS
Compliant
REACH
REACH: Contains No SVHCs
Item Dimension (L inchxW inchxH inch)
7 x 15 x 8
Weight
8.40 lb
Warranty Information
3 years repair or replace
