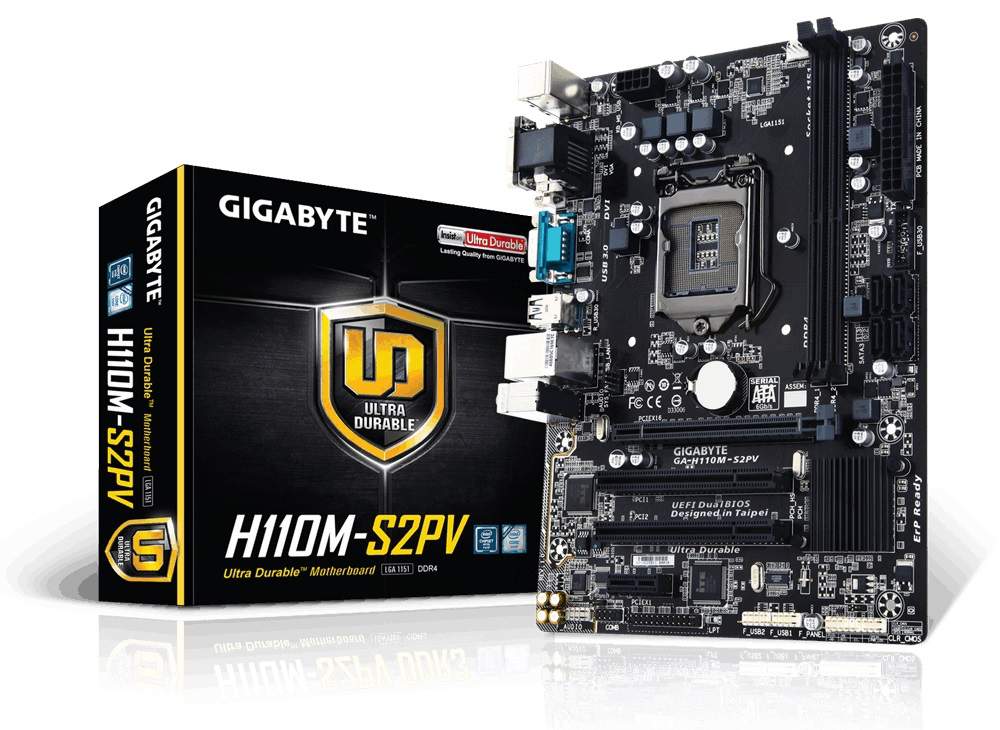

Gigabyte Motherboard GA-H110M-S2PV Core i7/i5/i3 H110 LGA1151 DDR4 PCI Express micro-ATX Retail
VPN:GA-H110M-S2PV
$79.00
STOCK:
  • Overview
  • Specification
• Supports 6th Generation Intel® Core™ Processor
• Dual Channel DDR4, 2 DIMMs
• 8-channel HD Audio with High Quality Audio Capacitors
• Audio Noise Guard with LED Trace Path Lighting
• DVI-D, D-sub ports for multiple display
• Realtek® GbE LAN with cFosSpeed Internet Accelerator Software
• All new GIGABYTE™ APP Center, simple and easy use
• GIGABYTE UEFI DualBIOS™ Technology
• Support Intel® Small Business Basics

CPU
Support for Intel Core i7 processors/Intel Core i5 processors/Intel Core i3 processors/Intel Pentium processors/Intel Celeron processors in the LGA1151 package
L3 cache varies with CPU

Chipset
Intel H110 Express Chipset

Memory
2 x DDR4 DIMM sockets supporting up to 32 GB of system memory
Dual channel memory architecture
Support for DDR4 2133 MHz memory modules
Support for ECC UDIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC UDIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules

Onboard Graphics
Integrated Graphics Processor - Intel HD Graphics support:
1 x D-Sub port, supporting a maximum resolution of 1920x120060 Hz
1 x DVI-D port, supporting a maximum resolution of 1920x120060 Hz
Maximum shared memory of 512 MB

Audio
Realtek ALC887 codec
High Definition Audio
2/4/5.1/7.1-channel
Support for S/PDIF Out

LAN
Realtek GbE LAN chip (10/100/1000 Mbit)

Expansion Slots
1 x PCI Express x16 slot, running at x16 (The PCI Express x16 slot conforms to PCI Express 3.0 standard.)
1 x PCI Express x1 slot (The PCI Express x1 slot conforms to PCI Express 2.0 standard.)
2 x PCI slots

Storage Interface
Chipset: 4 x SATA 6Gb/s connectors

USB
Chipset : 4 x USB 3.0/2.0 ports (2 ports on the back panel, 2 ports available through the internal USB header)
5 x USB 2.0/1.1 ports (4 ports on the back panel, 1 port available through the internal USB header)
Chipset+GENESYS LOGIC USB 2.0 Hub: 3 x USB 2.0/1.1 ports available through the internal USB headers

Internal I/O Connectors
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
4 x SATA 6Gb/s connectors
1 x CPU fan header
1 x system fan header
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
1 x USB 3.0/2.0 header
2 x USB 2.0/1.1 headers
1 x serial port header
1 x parallel port header
1 x Clear CMOS jumper

Back Panel Connectors
1 x PS/2 keyboard/mouse port
1 x D-Sub port
1 x DVI-D port
1 x serial port
2 x USB 3.0/2.0 ports
4 x USB 2.0/1.1 ports
1 x RJ-45 port
3 x audio jacks (Line In, Line Out, Mic In)

I/O Controller
iTE I/O Controller Chip

H/W Monitoring
System voltage detection
CPU/System temperature detection
CPU/System fan speed detection
CPU/System overheating warning
CPU/System fan fail warning
CPU/System fan speed control

BIOS
2 x 64 Mbit flash
Use of licensed AMI UEFI BIOS
Support for DualBIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Unique Features
Support for APP Center
3D OSD
BIOS
AutoGreen
Cloud Station
EasyTune
Fast Boot
Smart TimeLock
Smart Keyboard
Smart Backup
System Information Viewer
USB Blocker
Support for Q-Flash
Support for Smart Switch
Support for Xpress Install

Bundle Software
Norton Internet Security (OEM version)
cFosSpeed

Operating System
Support for Windows 10/8.1 64-bit
Support for Windows 7 32-bit/64-bit

Form Factor
Micro ATX Form Factor 24.4cm x 18.0cm

Remark
Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors website or 3rd party website.
Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website.

Item Dimension (L inchxW inchxH inch)
11 x 11 x 3

Weight
3.00 lb

Warranty Information
3 Years
