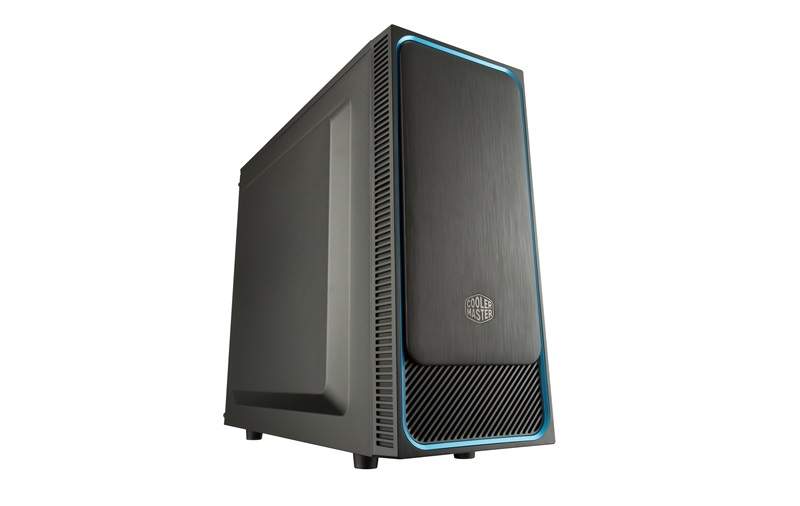

CoolerMaster Power Supply MCB-E500L-KN5A50-S00 MasterBox E500L+500w PSU Elite V3 Full Retail

Product Name
MasterBox E500L

Available Color
Black

Materials
Steel, Plastic

Motherboard Support
ATX, Micro-ATX, Mini-ITX

Expansion Slots
7

Drive Bays
5.25"
1
3.5"
2
2.5"
2

I/O Port
USB 3.0 x 2, Audio In / Out

Pre-installed Fan(s)
Rear
120mm x 1 black fan

Fan Support
Front
120mm / 140mm x 2
Top
120mm x 2
Rear
120mm x 1

Radiator Support
Front
120/140/240/280mm radiator
Rear
120mm radiator (Need to install fan first)

Clearances
CPU Cooler
157mm
PSU
220mm
GPU
399mm

Cable Routing
Behind MB Tray22mm

Dust Filters
Front, Top, Bottom

Power Supply
Bottom mount, ATX

Product Name
Elite V3 500W

ATX Version
Intel ATX 12V V2.31

PFC
Active PFC (>0.9)

Input Voltage
100-240Vac

Input Current
10-5A

Input Frequency
50-60Hz

Fan Size
120mm

Fan Bearing
Sleeve Fan

Powergood Signal
100-500ms

Hold Up Time
>10ms at 100% Load

Efficiency
75% at Typical Load

MTBF
>100,000 Hours

Operating Temperature
10 to 40^oC

Protection
OVP / OPP / OTP / SCP

Regulatory
TUV, cTUVus, CE, FCC, BSMI

Connector
M/B 20+4 Pin
1
CPU 12V 4+4 Pin
1
SATA
6
Peripheral 4 Pin
3
FDD Cable 4 Pin
1
PCI-e 6+2 Pin
2

Item Dimension (L"xW"xH")
19 x 10 x 22
Weight
31.00 LB
Warranty Information
2 year
